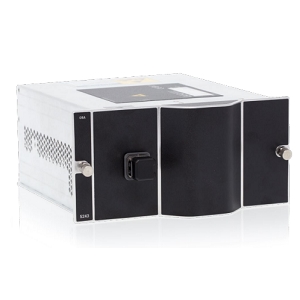

FTBx-5243-HWA

Optical Spectrum Analyzer by EXFO Inc.
3 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EXFO Inc..

The FTBx-5243-HWA from EXFO Inc. is a Optical Spectrum Analyzer with Optical Power Range 23 dBm, Wavelength Range 1250 to 1650 nm, Dynamic Range -80 to 18 dBm. More details for FTBx-5243-HWA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FTBx-5243-HWA
  • Manufacturer
    EXFO Inc.

Applications

  • Application
    DWDM, CWDM, and DWDM over CWDM networks

General Parameters

  • Configuration
    Benchtop
  • Optical Power Range
    23 dBm
  • Wavelength Range
    1250 to 1650 nm
  • Dynamic Range
    -80 to 18 dBm
  • Source Type
    Distributed Feedback Laser (DFB), Fabry-Perot (FP)
  • Analysis modes
    WDM, EDFA, drift, spectral transmittance, FP, DFB
  • Channel spacing
    12.5 to 200 GHz, CWDM
  • Optical Return Loss
    >40 dB
  • Polarization Dependence
    ±0.06 dB
  • Measurement Time
    <1 s
  • Modulation
    DP-QPSK, DP-BPSK, DP-8-QAM, DP-16-QAM, DP-64-QAM
  • Resolution Bandwidth
    0.05 nm
  • Wavelength Linearity
    ±0.003 nm
  • Optical Rejection Ratio
    35 to 50 dB
  • Wavelength Repeatability
    <0.001 nm
  • Power repeatability
    ±0.02 dB
  • Power Uncertainty
    ±0.02 dB
  • Total safe power
    23 dBm
  • Wavelength uncertainty
    ±4 to ±25 pm
  • Note
    Data signals: Up to 400 Gb/s

Connections & Interface

  • Connectors
    DIN 47256/UPC, FC/UPC, ST/UPC, SC/UPC, E-2000/UPC, LC/UPC, DIN 47256/APC, FC/APC, SC/APC, E-2000/APC, LC/APC
  • Interface
    USB

Physical Properties

  • Dimensions
    75 x 159 x 185 mm (H x W x D)
  • Weight
    1.4 kg

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -40 to 50 Degree C
  • Relative Humidity
    <95%
