TS100-60

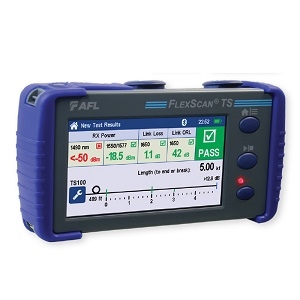

Optical Time Domain Reflectometer (OTDR) by AFL
8 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AFL.

The TS100-60 from AFL is a Optical Time Domain Reflectometer (OTDR) with Optical Wavelength 1650 nm. More details for TS100-60 can be seen below.

Product Specifications

Product Details

  • Part Number
    TS100-60
  • Manufacturer
    AFL
  • Description
    1650 nm Wavelength Range Handheld OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 60 Degree C

Connections & Interface

  • Interface
    USB
  • Wireless Interface
    WiFi, Bluetooth

General Parameters

  • Equipment Type
    Handheld
  • Optical Wavelength
    1650 nm
  • Data Storage
    4 GB (Internal)
  • Measurement Range
    -50 to 10 dBm
  • Display
    4.3 in color touchscreen LCD, 480 x 272, backlit
  • Distance Accuracy
    ±1.5 m
  • Distance Resolution
    0.1 m
  • Fiber Type
    Single Mode
  • IOR Setting
    1.3000 to 1.7000 (Index of Refraction)
  • Battery working and charging time
    >12 Hr (Operating)
  • Laser Safety
    Class 1
  • Linearity
    ±0.05 dB
  • Loss Resolution
    0.01 dB
  • Modulation
    270 to 2000 Hz
  • Accuracy
    ±0.5 dB
  • Operation Mode
    CW
  • Output Power
    ±1.5 to 3 dBm
  • Output Stability
    <±0.5 dB
  • Pixel Resolution
    480 x 272 pixels
  • Reflectance Accuracy
    ±2 dB
  • Spectral Width (FWHM)
    <5 nm
  • VFL Output Power
    1.5 mW
  • VFL(Launching Mode)
    CW/1 Hz
  • Wavelength accuracy
    ±20 nm

Applications

  • Application
    Troubleshoot PONs or Point-to-Point networks, Verify loss of PON splitters, Verify insertion loss, Diagnose faults exceeding, Pinpoint location of macro-bends or breaks

Physical Properties

  • Dimension
    86 x 160 x 43 mm
  • Weight
    0.4 kg

Technical Documents
Click to view more product details on manufacturer's website
