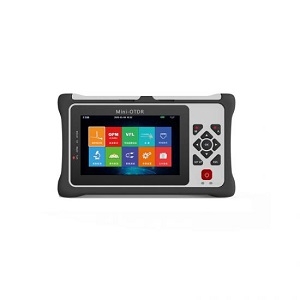

X1100-A22SF

Optical Time Domain Reflectometer (OTDR) by Shanghai Shinho Fiber Communication
27 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Shinho Fiber Communication.

The X1100-A22SF from Shanghai Shinho Fiber Communication is a Optical Time Domain Reflectometer (OTDR) with Optical Wavelength 1550 nm, Dynamic Range 22 dB, Distance Range 80 km (Measuring range), Operating Current 3 A, DC Voltage 12 VDC. More details for X1100-A22SF can be seen below.

Product Specifications

Product Details

  • Part Number
    X1100-A22SF
  • Manufacturer
    Shanghai Shinho Fiber Communication
  • Description
    1550 nm Wavelength Range 22 dB Dynamic Range Single Mode OTDR

Environmental Conditions

  • Operating Humidity
    <95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 80 Degree C

Connections & Interface

  • Interface
    USB, SD Card

General Parameters

  • Optical Wavelength
    1550 nm
  • Battery Capacity
    3.7 V / 5200 mAh
  • Display
    4.3-inch, TFT 800 x 480 resolution
  • Fiber Type
    Single Mode
  • Battery working and charging time
    >10 Hr (Standby)
  • Dynamic Range
    22 dB
  • Memory Capacity
    100000 Curves
  • Distance Range
    80 km (Measuring range)
  • Operating Current
    3 A
  • Pixel Resolution
    800 x 480 pixels
  • Power Consumption
    35 W
  • Power Supply
    100 to 250 VAC, 50 to 60 Hz
  • DC Voltage
    12 VDC

Applications

  • Application
    Measure Optical Fiber Length, Transmission Attenuation, Attenuation of Splice

Physical Properties

  • Dimension
    175 x 105 x 45 mm
  • Weight
    560 g
