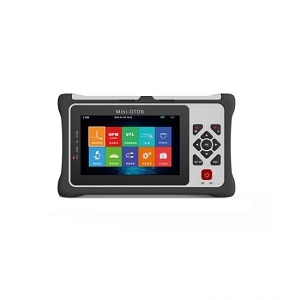

The X1100-A26D from Shanghai Shinho Fiber Communication is a Mini Optical Time Domain Reflectometer (OTDR) that operates at a wavelength range of 1310 nm or 1550 nm. It has a measuring range of 90 km and dynamic range of 26 dB or 24 dB. This multifunctional OTDR has a 4.3-inch full-view capacitive touch screen that supports multi-touch and Thin-Film Transistor (TFT) that has a resolution of 800 x 480 pixels.
The X1100-A26D delivers an output power of 35 W and has a data storage of 100,000 groups of curves. It supports screen capture and can be controlled via USB A Type×1, Micro-USB×1 & SD card interfaces. This OTDR requires an AC supply voltage of 100 V - 250 V and consumes 3A of current. It is available in a portable package that measures 175 mm x 105 mm x 45 mm and includes power adapter, lithium battery, FC adaptor & USB cable.
