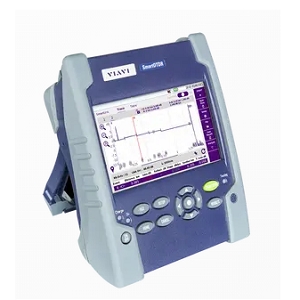

SmartOTDR 100A

Optical Time Domain Reflectometer (OTDR) by Viavi Solutions Inc.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Viavi Solutions Inc..

The SmartOTDR 100A from Viavi Solutions Inc. is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone 1.35 m, Attenuation Dead Zone 4 m, Optical Wavelength 1310 to 1650 nm, Dynamic Range 32 to 37 dB, Pulse Width 5 ns to 20 µs. More details for SmartOTDR 100A can be seen below.

Product Specifications

Product Details

  • Part Number
    SmartOTDR 100A
  • Manufacturer
    Viavi Solutions Inc.
  • Description
    1310 to 1650 nm Wavelength Range 32 to 37 dB Dynamic Range Handheld OTDR

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Connections & Interface

  • Wireless Interface
    WiFi, Bluetooth

General Parameters

  • Equipment Type
    Handheld
  • Event Dead Zone
    1.35 m
  • Attenuation Dead Zone
    4 m
  • Optical Wavelength
    1310 to 1650 nm
  • Battery Body Material
    Lithium-polymer
  • Measurement Range
    -55 to 0 dBm
  • Display
    5-inch capacitive color touch screen (12.5 cm), 800 x 480 W VGA
  • Distance Accuracy
    (±1 m) ± (sampling resolution) ±(1.10-5 x distance)
  • Fiber Type
    Single Mode
  • Battery working and charging time
    20 Hr (Operating)
  • Laser Safety
    Class 1
  • Linearity
    ±0.04 dB
  • Dynamic Range
    32 to 37 dB
  • Memory Capacity
    10000 traces
  • Modulation
    270 Hz to 2 kHz
  • Pulse Width
    5 ns to 20 µs
  • Accuracy
    ±0.5 dB
  • Operation Mode
    CW
  • Operating Current
    2 A
  • Output Power
    -3.5 dBm
  • Output Stability
    ±0.05 dB
  • Pixel Resolution
    800 x 480 pixels
  • Power Consumption
    24 W
  • Power Supply
    100 to 240 VAC, 50 to 60 Hz
  • Sampling Point
    Upto 256000 points
  • Sampling Resolution
    4 cm
  • DC Voltage
    12 VDC
  • VFL(Launching Mode)
    CW, 1 Hz
  • Wavelength accuracy
    ±20 nm

Physical Properties

  • Dimension
    175 x 138 x 57 mm (H x W x D)
  • Weight
    0.9 kg
