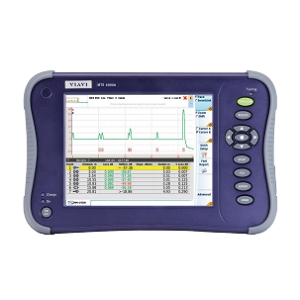

TB6000AV2

Optical Time Domain Reflectometer (OTDR) by Viavi Solutions Inc.
18 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Viavi Solutions Inc..

The TB6000AV2 from Viavi Solutions Inc. is a Optical Time Domain Reflectometer (OTDR) with Event Dead Zone 0.2 to 0.25 m, Attenuation Dead Zone 0.4 to 2.1 m, Optical Wavelength 850 to 1300 nm, Dynamic Range 16 to 24 dB, Pulse Width 1 ns. More details for TB6000AV2 can be seen below.

Product Specifications

Product Details

  • Part Number
    TB6000AV2
  • Manufacturer
    Viavi Solutions Inc.
  • Description
    850 to 1300 nm Wavelength Range 16 to 24 dB Dynamic Range Multi Mode OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    -10 to 45 Degree C

Connections & Interface

  • Interface
    USB, RJ45, RS422
  • Optical Connector
    FC, ST, SC
  • Wireless Interface
    LAN

General Parameters

  • Event Dead Zone
    0.2 to 0.25 m
  • Attenuation Dead Zone
    0.4 to 2.1 m
  • Optical Wavelength
    850 to 1300 nm
  • Data Storage
    128 MB to 2 GB
  • Measurement Range
    -60 to 10 dBm
  • Display
    8 Inch high-visibility color touch screen, 800 x 600 LCD
  • Display Resolution
    0.001 dB (Attenuation), 0.01 dB (Reflectance)
  • Distance Accuracy
    ±0.1 m ±sampling resolution ±1.10-5 x distance
  • Fiber Type
    Multi Mode
  • IOR Setting
    1.30000 to 1.70000
  • Laser Safety
    Class 1
  • Linearity
    ±0.05 dB
  • Dynamic Range
    16 to 24 dB
  • Loss Threshold
    0.01 to 1.99 dB
  • Pulse Width
    1 ns
  • Distance Range
    0.05 to 10 km
  • Pixel Resolution
    800 x 600 pixels
  • Reflectance Accuracy
    ±2 dB
  • Sampling Point
    Upto 256000 points
  • Sampling Resolution
    2 cm
  • VFL(Launching Mode)
    CW, 1 Hz
  • Wavelength accuracy
    ±20 nm

Physical Properties

  • Dimension
    290 x 188 x 97 mm
  • Weight
    3.8 kg
