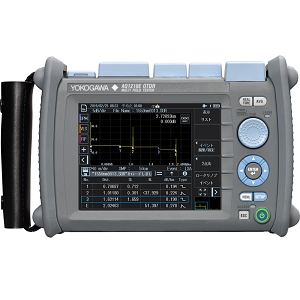

AQ1216F

Optical Time Domain Reflectometer (OTDR) by Yokogawa Test & Measurement Corporation
32 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Yokogawa Test & Measurement Corporation.

The AQ1216F from Yokogawa Test & Measurement Corporation is a Optical Time Domain Reflectometer (OTDR) with OTDR Measurement Time 3 minutes, Event Dead Zone 0.5 m, Attenuation Dead Zone 2.5 m, Optical Wavelength 1310 to 1650 nm, Dynamic Range 40 to 42 dB. More details for AQ1216F can be seen below.

Product Specifications

Product Details

  • Part Number
    AQ1216F
  • Manufacturer
    Yokogawa Test & Measurement Corporation
  • Description
    1310 to 1650 nm Wavelength 40 to 42 dB Dynamic Range Multifuntional/Modular OTDR

Environmental Conditions

  • Operating Humidity
    <95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Connections & Interface

  • Interface
    USB 2.0, LAN
  • Optical Connector
    SC, FC, LC

General Parameters

  • Equipment Type
    Multifuntional/Modular
  • OTDR Measurement Time
    3 minutes
  • Dead Zone(Backscatter)
    30 m (PON)
  • Event Dead Zone
    0.5 m
  • Attenuation Dead Zone
    2.5 m
  • Optical Wavelength
    1310 to 1650 nm
  • Battery Body Material
    Li-ion polymer
  • Data Storage
    >1000 traces (Internal), USB (external)
  • Display
    5.7-inch color TFT LCD (resolution: 640 x 480, multi-touch capacitive touchscreen)
  • Distance Accuracy
    ±(0.75 m + measurement distance x 2 x 10-5 + 2 cm)
  • Fiber Type
    Single Mode
  • Battery working and charging time
    10 Hr (Operating), 5 Hr (Charging)
  • Laser Safety
    Class 1M, Class 1, Class 3R
  • Dynamic Range
    40 to 42 dB
  • Memory Capacity
    >1000 traces
  • Modulation
    270 Hz to 2 kHz
  • Pulse Width
    3 to 20000 ns
  • Operation Mode
    CW
  • Distance Range
    0.1 to 512 km
  • Operating Current
    3 A
  • Sampling Point
    256000 points
  • Sampling Resolution
    2 cm
  • DC Voltage
    5 VDC
  • Wavelength accuracy
    ±20 nm

Physical Properties

  • Dimension
    210 x 148 x 69 mm (W x H x D)
  • Weight
    1 kg
