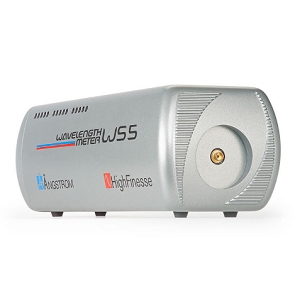

WS5 Series

Optical Wavelength Meter by HighFinesse

Note: Your Quotation Request will be directed to HighFinesse.

The WS5 Series from HighFinesse is a Optical Wavelength Meter with Wavelength Range 192 to 2250 nm, Measurement Time 1500 Hz (IR-I & IR-II on request), 950 Hz (all other wavelength ranges), Wavelength Accuracy 3 pm, 500 to 3000 MHz, Input Power 0.02 to 800 µW. More details for WS5 Series can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    WS5 Series
  • Manufacturer
    HighFinesse

General Parameters

  • Wavelength Range
    192 to 2250 nm
  • Measurement Time
    1500 Hz (IR-I & IR-II on request), 950 Hz (all other wavelength ranges)
  • Wavelength Accuracy
    3 pm, 500 to 3000 MHz
  • Input Power
    0.02 to 800 µW
  • Input energy
    0.02 to 800 µJ
  • Operation Mode
    CW Lasers, Pulsed Lasers
  • Measurement Unit
    nm, pm, MHz
  • Spectral Band
    VIS Band, UV Band, IR Band
  • Coupling Accuracy
    3000 MHz
  • Linewidth estimation accuracy
    2000 MHz
  • Power Consumption
    <2.3 W
  • Warm up time
    >30 minutes
  • Wavelength deviation sensitivity
    500 MHz

Fiber Parameters

  • Fiber Mode
    Multi Mode

Connections & Interface

  • Interface
    USB 2.0

Physical Properties

  • Dimensions
    360 x 120 x 120 mm (L x W x H)
  • Weight
    2.8 kg
