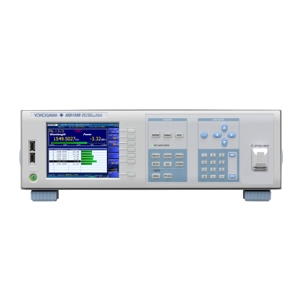

The AQ6150B from Yokogawa Test & Measurement Corporation is a Optical Wavelength Meter with Wavelength Range 900 to 1700 nm, Measurement Time 0.2 s, less (update rate: Fast), 0.3 s, less (update rate: Normal), Wavelength Accuracy ±0.7 to ±1.5 ppm((±1 pm to ±2.3 pm), Input Power -40 to 18 dBm, Wavelength Resolution 0.0001 nm. More details for AQ6150B can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AQ6150B
  • Manufacturer
    Yokogawa Test & Measurement Corporation

Applications

  • Application
    Inspection of DFB-LDs, tunable lasers, optical transceivers. WDM transmission systems

General Parameters

  • Wavelength Range
    900 to 1700 nm
  • Measurement Time
    0.2 s, less (update rate: Fast), 0.3 s, less (update rate: Normal)
  • Wavelength Accuracy
    ±0.7 to ±1.5 ppm((±1 pm to ±2.3 pm)
  • Input Power
    -40 to 18 dBm
  • Wavelength Resolution
    0.0001 nm
  • Operation Mode
    CW Lasers
  • Frequency Band
    O Band, L Band
  • Measurement Unit
    nm, THz, cm-1
  • AC Voltage
    100 to 240 VAC, 50/60 Hz
  • Spectral Band
    IR Band
  • Data Storage
    Internal: 256 MB or more, External: USB
  • Display
    5.7-inch color LCD (640 x 480 dots)
  • Laser Class
    CLASS 1
  • Linearity
    ±0.3 dB
  • Power Consumption
    100 VA
  • Power Resolution
    0.01 dB
  • Polarization Dependence
    ±0.5 dB
  • Power accuracy
    ±0.5 dB
  • Return Loss
    35 dB
  • Warm up time
    60 minutes or more
  • Recommended re-calibration
    1 year
  • Technology
    Distributed Feedback (DFB)

Fiber Parameters

  • Fiber Mode
    Single Mode
  • Fiber Diameter
    SM (ITU-T G.652)

Connections & Interface

  • Connector
    FC/PC, SC/PC
  • Interface
    Ethernet, USB, VGA, GPIB

Environmental Conditions

  • Operating Temperature
    5 to 35 Degree C
  • Storage Temperature
    -10 to 50 Degree C
  • Relative Humidity
    20 to 80% RH

Physical Properties

  • Dimensions
    426 x 132 x 459 mm (W x H x D)
  • Weight
    11 kg
