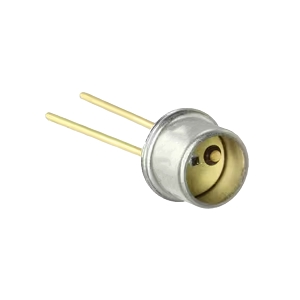

SD008-2151-112

Photodiode by Advanced Photonix
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Advanced Photonix.

The SD008-2151-112 from Advanced Photonix is a Photodiode with Wavelength Range 220 to 370 nm, Capacitance 5 pF, Dark Current 1 to 100 pA, Responsivity/Photosensitivity 0.18 A/W, Rise Time 1 ns. More details for SD008-2151-112 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SD008-2151-112
  • Manufacturer
    Advanced Photonix
  • Description
    220 to 370 nm GaN UV Photodiode with TO-46 Package

Applications

  • Application
    UV Detection and Monitoring, Medical, Military

General Parameters

  • Fall Time
    1 ns
  • Module
    No
  • Noise equivalent power(NEP) :
    0.0016 x 10-14 W/vHz>0.5
  • Package
    TO-46, Isolated
  • Package Type
    TO-Can
  • Operation Mode
    Photovoltaic
  • Wavelength Range
    220 to 370 nm
  • Photodiode Material
    Gallium Arsenide (GaAs)
  • Reverse Voltage
    5 V
  • Rise/Fall Time
    1 ns
  • RoHs
    Yes
  • Short Circuit Current
    20 nA
  • Shunt Resistance
    1 to 100 GOhms
  • Spectral Band
    Ultraviolet
  • Capacitance
    5 pF
  • Dark Current
    1 to 100 pA
  • Responsivity/Photosensitivity
    0.18 A/W
  • Rise Time
    1 ns

Physical Properties

  • Active Area
    0.076 mm2
  • Dimensions
    0.28 x 0.28 mm (Active area)

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -55 to 125 Degree C
