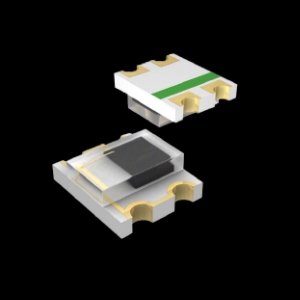

SD0800-3111-185

Photodiode by Advanced Photonix
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Advanced Photonix.

The SD0800-3111-185 from Advanced Photonix is a Photodiode with Wavelength Range 900 to 1700 nm, Capacitance 75 to 100 pF, Dark Current 0.5 to 5 nA, Responsivity/Photosensitivity 0.9 to 1 A/W, Active Area Diameter 1 mm. More details for SD0800-3111-185 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SD0800-3111-185
  • Manufacturer
    Advanced Photonix
  • Description
    900 to 1700 nm Diameter InGaAs Photodiode with Surface Mount Package

Applications

  • Application
    Industrial Sensing, Security, Communication, Medical

General Parameters

  • Breakdown Voltage
    20 V
  • Forward Voltage
    0.8 V
  • Module
    No
  • Package
    Surface Mount
  • Package Type
    Surface Mount
  • Operation Mode
    Photoconductive
  • Wavelength Range
    900 to 1700 nm
  • Photodiode Material
    Indium Gallium Arsenide (InGaAs)
  • Reverse Voltage
    20 V
  • RoHs
    Yes
  • Shunt Resistance
    40 MOhms
  • Spectral Band
    Short Wave-IR, Near-IR
  • Capacitance
    75 to 100 pF
  • Dark Current
    0.5 to 5 nA
  • Responsivity/Photosensitivity
    0.9 to 1 A/W

Physical Properties

  • Active Area
    0.79 mm2
  • Window Material
    Borosilicate, Quartz
  • Active Area Diameter
    1 mm

Temperature

  • Operating Temperature
    -40 to 100 Degree C
  • Storage Temperature
    -40 to 125 Degree C
