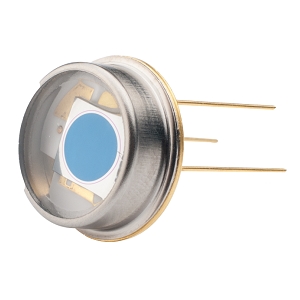

SD200-12-22-241

Photodiode by Advanced Photonix
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Advanced Photonix.

The SD200-12-22-241 from Advanced Photonix is a Photodiode with Wavelength Range 350 to 1100 nm, Capacitance 25 to 200 pF, Dark Current 7 to 26 nA, Responsivity/Photosensitivity 0.22 to 0.28 A/W, Rise Time 4 to 90 ns. More details for SD200-12-22-241 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SD200-12-22-241
  • Manufacturer
    Advanced Photonix
  • Description
    5.08 mm Diameter Super Blue Enchanced Silicon Photodiode with TO-8 Package

Applications

  • Application
    Instrumentation, Medical, Industrial

General Parameters

  • Module
    No
  • Noise equivalent power(NEP) :
    8.9 x 10-14 W/vHz
  • Package
    TO-8
  • Package Type
    TO-Can
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    350 to 1100 nm
  • Photodiode Material
    Silicon (Si)
  • Reverse Voltage
    75 V
  • Rise/Fall Time
    4 to 90 ns
  • RoHs
    Yes
  • Shunt Resistance
    70 MOhms
  • Spectral Band
    Blue
  • Capacitance
    25 to 200 pF
  • Dark Current
    7 to 26 nA
  • Responsivity/Photosensitivity
    0.22 to 0.28 A/W
  • Rise Time
    4 to 90 ns
  • Note
    Load Resistance: 50 Ohms

Physical Properties

  • Active Area
    20.3 mm2
  • Window Material
    Borosilicate, Quartz
  • Active Area Diameter
    5.08 mm

Temperature

  • Operating Temperature
    -40 to 125 Degree C
  • Storage Temperature
    -55 to 150 Degree C
