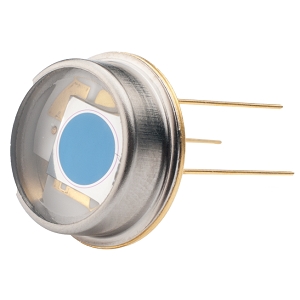

SD290-12-22-241

Photodiode by Advanced Photonix
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Advanced Photonix.

The SD290-12-22-241 from Advanced Photonix is a Photodiode with Wavelength Range 350 to 1100 nm, Capacitance 255 to 870 pF, Dark Current 120 nA, Responsivity/Photosensitivity 0.2 to 0.22 A/W, Rise Time 15 ns. More details for SD290-12-22-241 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SD290-12-22-241
  • Manufacturer
    Advanced Photonix
  • Description
    43 mm Active Area Blue Enchanced Silicon PIN Photodiode with TO-8 Package

Applications

  • Application
    Military, Medical, Industrial

General Parameters

  • Breakdown Voltage
    25 V
  • Module
    No
  • Noise equivalent power(NEP) :
    9 x 10-13 W/vHz
  • Package
    TO-8
  • Package Type
    TO-Can
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    350 to 1100 nm
  • Photodiode Material
    Silicon (Si)
  • Response Time :
    15 to 120 ns
  • Reverse Voltage
    25 V
  • Rise/Fall Time
    15 ns
  • RoHs
    Yes
  • Shunt Resistance
    20 MOhms
  • Spectral Band
    Blue
  • Capacitance
    255 to 870 pF
  • Dark Current
    120 nA
  • Responsivity/Photosensitivity
    0.2 to 0.22 A/W
  • Rise Time
    15 ns
  • Note
    Load Resistance: 50 Ohms

Physical Properties

  • Active Area
    43 mm2
  • Dimensions
    7.4 x 5.8 mm (Active area)

Temperature

  • Operating Temperature
    -40 to 125 Degree C
  • Storage Temperature
    -55 to 150 Degree C
