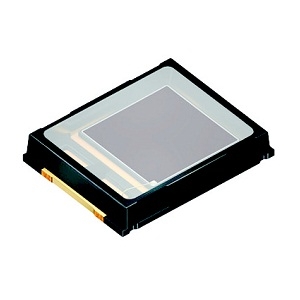

SFH 2201

Photodiode by ams OSRAM

Note: Your Quotation Request will be directed to ams OSRAM.

The SFH 2201 from ams OSRAM is a Photodiode with Wavelength Range 300 to 1100 nm, Capacitance 65 pF, Dark Current 1 to 25 nA, Responsivity/Photosensitivity 0.2 to 0.45 A/W, Rise Time 0.07 to 1.6 µs. More details for SFH 2201 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SFH 2201
  • Manufacturer
    ams OSRAM
  • Description
    Silicon PIN photodiode from 300 to 1100 nm

Applications

  • Application
    Electronic Equipment, Industrial Automation

General Parameters

  • Configuration
    Single
  • Fall Time
    0.065 to 1.2 µs
  • Forward Voltage
    1.2 V
  • Module
    No
  • Package
    clear silicone
  • Package Type
    Surface Mount
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    300 to 1100 nm
  • Photodiode Material
    Silicon
  • Power Dissipation
    150 mW
  • Reverse Voltage
    16 V
  • Short Circuit Current
    76 µA
  • Capacitance
    65 pF
  • Dark Current
    1 to 25 nA
  • Responsivity/Photosensitivity
    0.2 to 0.45 A/W
  • Rise Time
    0.07 to 1.6 µs
  • Note
    Open-circuit voltage: 300 to 350 mV, Half angle: 60 Degree

Physical Properties

  • Active Area
    2.85 x 2.85 mm

Temperature

  • Operating Temperature display
    -40 to 125 Degree C
  • Storage Temperature
    -40 to 125 Degree C
  • Temperature Coefficient
    -2.6 mV/K
