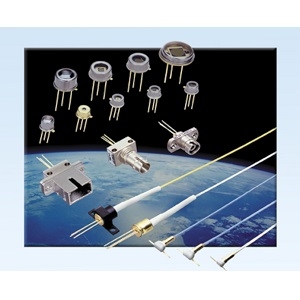

FD150

Photodiode by Nortus Optronic GmbH

Note: Your Quotation Request will be directed to Nortus Optronic GmbH.

The FD150 from Nortus Optronic GmbH is a Photodiode with Wavelength Range 1300 to 1550 nm, Capacitance 1.5 to 2 pF, Dark Current 0.5 to 3 nA, Responsivity/Photosensitivity 0.8 to 0.95 A/W, Active Area Diameter 150 µm. More details for FD150 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FD150
  • Manufacturer
    Nortus Optronic GmbH
  • Description
    InGaAs PIN photodiode from 1300 to 1550 nm

Connections & Interface

  • Optical Connector
    FC, SC, ST

General Parameters

  • Forward Current
    5 mA
  • Module
    No
  • Package
    TO-18
  • Package Type
    TO-Can
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    1300 to 1550 nm
  • Photodiode Material
    InGaAs
  • Reverse Current
    1 mA
  • Reverse Voltage
    25 V
  • Rise/Fall Time
    0.3 to 1 ns
  • Capacitance
    1.5 to 2 pF
  • Dark Current
    0.5 to 3 nA
  • Responsivity/Photosensitivity
    0.8 to 0.95 A/W

Physical Properties

  • Active Area Diameter
    150 µm

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
