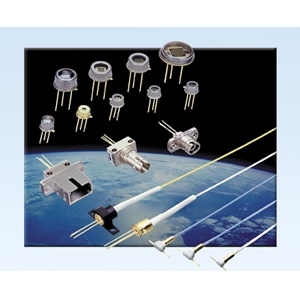

FD80

Photodiode by Nortus Optronic GmbH

Note: Your Quotation Request will be directed to Nortus Optronic GmbH.

The FD80 from Nortus Optronic GmbH is a Photodiode with Wavelength Range 1300 to 1550 nm, Capacitance 0.4 to 0.75 pF, Dark Current 0.1 to 1 nA, Responsivity/Photosensitivity 0.8 to 0.9 A/W, Active Area Diameter 80 µm. More details for FD80 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    FD80
  • Manufacturer
    Nortus Optronic GmbH
  • Description
    InGaAs PIN photodiode from 1300 to 1550 nm

Connections & Interface

  • Optical Connector
    FC, SC, ST

General Parameters

  • Forward Current
    5 mA
  • Module
    No
  • Package
    TO-18
  • Package Type
    TO-Can
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    1300 to 1550 nm
  • Photodiode Material
    InGaAs
  • Reverse Current
    0.5 mA
  • Reverse Voltage
    30 V
  • Rise/Fall Time
    0.15 to 0.5 ns
  • Capacitance
    0.4 to 0.75 pF
  • Dark Current
    0.1 to 1 nA
  • Responsivity/Photosensitivity
    0.8 to 0.9 A/W

Physical Properties

  • Active Area Diameter
    80 µm

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
