AP-25G

Photodiode by Opto Diode Corporation

Note: Your Quotation Request will be directed to Opto Diode Corporation.

The AP-25G from Opto Diode Corporation is a Photodiode with Wavelength Range 2.2 to 2.4 µm. More details for AP-25G can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    AP-25G
  • Manufacturer
    Opto Diode Corporation
  • Description

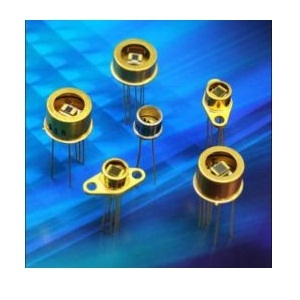

    AP Series - Uncooled PbS Packaged IR Detectors

General Parameters

  • Configuration
    Single
  • Channels
    Single
  • Module
    No
  • Package
    Through-Hole
  • Package Type
    Through-Hole
  • Operation Mode
    Photovoltaic
  • Wavelength Range
    2.2 to 2.4 µm
  • Photodiode Material
    Pbs
  • RoHs
    Yes
  • Shunt Resistance
    0.5 to 2 MOhms
  • Spectral Band
    Infrared
  • Voltage Responsivity
    4.0x10 5 V/W
  • Note
    Part Nµmber: 40370

Physical Properties

  • Active Area
    4 mm2

Temperature

  • Operating Temperature
    -40 to 65 Degree C
  • Storage Temperature
    -40 to 65 Degree C
