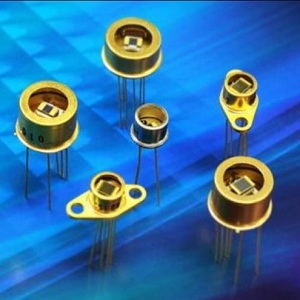

BXP-35F

Photodiode by Opto Diode Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Opto Diode Corporation.

The BXP-35F from Opto Diode Corporation is a Single Channel PbSe based Photodiode that has a fast response speed for Mid-IR applications. It has an active element area of 9 sq. mm and a detectivity of 1.5 x 10^10 cm sqrt.Hz/W. The photodiode has a peak

Product Specifications

View similar products

Product Details

  • Part Number
    BXP-35F
  • Manufacturer
    Opto Diode Corporation
  • Description
    3.8 µm Single-Channel IR Detector for Industrial Applications

Applications

  • Application
    Gas Analysis, Medical, Industrial, Emissions Monitoring, Spectroscopy, Process Control Systems, Thermal Imaging, Defense And Security

General Parameters

  • Configuration
    Single
  • Channels
    Single
  • Dark Resistance :
    0.5 to 1 MOhms
  • Module
    No
  • Package
    TO5 Package
  • Package Type
    TO-Can
  • Operation Mode
    Photovoltaic
  • Wavelength Range
    3.8 µm
  • Photodiode Material
    PbSe
  • Response Time :
    2 to 5 µs
  • RoHs
    Yes
  • Spectral Band
    Infrared
  • Voltage Responsivity
    6.0 x 103 to 1.0 x 104 V/W
  • Note
    Element Operating Temperature: 23 Degree C, Directivity: 5.0 x 109 to 1.5 x 1010

Physical Properties

  • Active Area
    3 mm x 3 mm
  • Window Material
    2.4 µm Longpass Ge Filter

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
