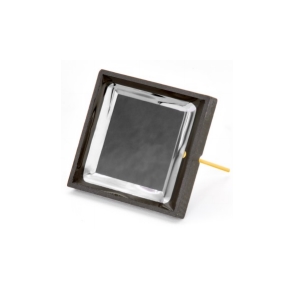

SXUV100TF135

Photodiode by Opto Diode Corporation

Note: Your Quotation Request will be directed to Opto Diode Corporation.

The SXUV100TF135 from Opto Diode Corporation is a photodiode with integrated thin film filter that operates from 18 to 80 nm. This 100 sq mm photodiode has a responsivity of 0.15 A/W at 40 nm. It comes with protective covering and can operate from -10 to 40 C.

 Product Specifications

    Product Details

    • Part Number :
      SXUV100TF135
    • Manufacturer :
      Opto Diode Corporation
    • Description :
      100 mm2 Active Area Directly-Deposited Thin-Film Filter Photodiode

    Applications

    • Application :
      Laser Power Monitoring, Semiconductor Photolithography, Metrology Systems

    General Parameters

    • Breakdown Voltage :
      25 Volts
    • Configuration :
      Single
    • Package Type :
      Ceramic
    • Photodetector Type :
      PN
    • Operation Mode :
      Photoconductive
    • Response Time :
      20 ns
    • Reverse Voltage :
      25 Volts
    • RoHs :
      yes
    • Spectral Band :
      UltraViolet
    • Capacitance :
      220 to 350 pF
    • Dark Current :
      8 to 25 nA
    • Responsivity/Photosensitivity :
      0.08 to 0.1 A/W@13.5 nm
    • Wavelength Range :
      18 to 80 nm
    • Note :
      Series Resistance: 0.5 to 3 Ohms, Detection Range: 18 to 80 nm

    Physical Properties

    • Active Area :
      100 mm2(10 mm x 10 mm)

    Temperature

    • Operating Temperature display :
      -10 to 40 Degree C
    • Storage Temperature :
      -10 to 40 Degree C
