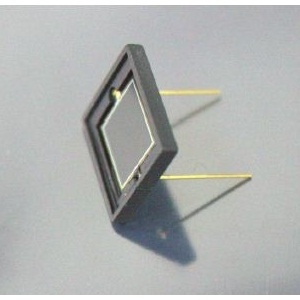

OSD100-UC

Photodiode by OTRON
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OTRON.

The OSD100-UC from OTRON is a Photodiode with Wavelength Range 190 to 1100 nm, Capacitance 70 to 465 pF, Dark Current 2.7 to 5.94 nA, Responsivity/Photosensitivity 0.51 to 1.4 A/W, Rise Time 105 to 120 ns. More details for OSD100-UC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OSD100-UC
  • Manufacturer
    OTRON
  • Description
    UV Enhanced Photo diode

Applications

  • Application
    UV-exposure Meters, Optical measurement equipment, Analytical /medical lnstrument, Pollution monitoring

General Parameters

  • Configuration
    Single
  • Channels
    Single
  • Detectivity
    1.47 x 1013 cm(Hz/W)1/2
  • Module
    No
  • Noise equivalent power(NEP) :
    6.8 x 10 -14 W/Hz 1/2
  • Package
    Ceramic Stem
  • Package Type
    Ceramic
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    190 to 1100 nm
  • Photodiode Material
    Silicon
  • Reverse Bias Voltage
    33 V
  • Reverse Voltage
    33 V
  • RoHs
    Yes
  • Short Circuit Current
    180 µA
  • Shunt Resistance
    3.7 GOhms
  • Capacitance
    70 to 465 pF
  • Dark Current
    2.7 to 5.94 nA
  • Responsivity/Photosensitivity
    0.51 to 1.4 A/W
  • Rise Time
    105 to 120 ns
  • Note
    358 mV(open circuit voltage)

Physical Properties

  • Active Area
    9.4 x 9.4 mm2

Temperature

  • Operating Temperature
    -40 to 80 Degree C
  • Storage Temperature
    -40 to 100 Degree C
  • Temperature Coefficient
    0.18 times/Degree C
