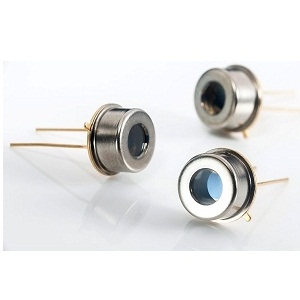

PbS020020TO5

Photodiode by trinamiX
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to trinamiX.

The PbS020020TO5 from trinamiX is a Photodiode with Wavelength Range 2.7 µm. More details for PbS020020TO5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PbS020020TO5
  • Manufacturer
    trinamiX
  • Description
    Infrared detector PbS photoconductive detector Double encapsulated TO-package

Applications

  • Application
    Gas Analysis, Spectroscopy, Process Control, Temperature Control

General Parameters

  • Configuration
    Single
  • Cut-Off Wavelength
    2.9 µm
  • Dark Resistance :
    0.3 to 3 MOhms
  • Detectivity
    0.8 x 1011 to 1.1 x 1011 cm HzvW
  • Package
    Bare Chip
  • Package Type
    Bare Chip
  • Operation Mode
    Photovoltaic
  • Wavelength Range
    2.7 µm
  • Photodiode Material
    PbS
  • Response Time :
    200 µs (constant)
  • RoHs
    Yes
  • Spectral Band
    Near-IR
  • Voltage Responsivity
    2.8 x 105 to 4 x 105 V/W

Physical Properties

  • Active Area
    2 x 2 mm2
  • Window Material
    Sapphire

Temperature

  • Operating Temperature
    -30 to 70 Degree C
  • Storage Temperature
    -55 to 70 Degree C
