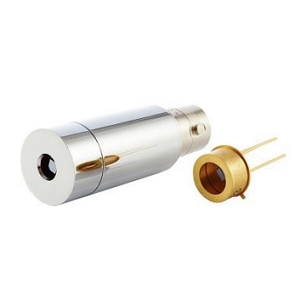

PC-5

Photodiode by VIGO Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to VIGO Photonics.

The PC-5 from VIGO Photonics is a Photodiode with Wavelength Range 5 µm, Responsivity/Photosensitivity 0.07 A.mm/W. More details for PC-5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PC-5
  • Manufacturer
    VIGO Photonics
  • Description
    1 to 12 µm HgCdTe ambient temperature photoconductive detector

Connections & Interface

  • RF Connector
    BNC

General Parameters

  • Configuration
    Single
  • Acceptance Angle
    90 Degree
  • Cut-Off Frequency
    10 kHz (noise corner frequency)
  • Detectivity
    1 x 109 to 1.5 x 109 cm·Hz1/2/W
  • Module
    No
  • Package
    TO-39
  • Package Type
    TO-Can
  • Operation Mode
    Photoconductive
  • Wavelength Range
    5 µm
  • Photodiode Material
    Mercury Cadmium Telluride (HgCdTe)
  • Shunt Resistance
    1200 Ohms
  • Responsivity/Photosensitivity
    0.07 A.mm/W
  • Note
    Constant Time: 5000 ns, Current responsivity-active area: 0.07 A·mm/W , Bias voltage-active area length ratio: 4.5 V/mm

Physical Properties

  • Active Area
    0.05 x 0.05, 0.1 x 0.1, 0.25 x 0.25, 0.5 x 0.5, 1 x 1, 2 x 2, 3 x 3 mm
