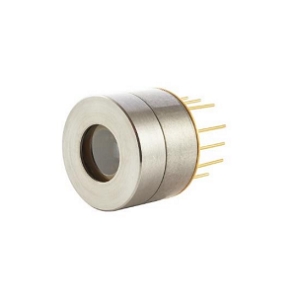

PCAS-2TE-9-0.1x0.1-TO8-wZnSeAR-70

Photodiode by VIGO Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to VIGO Photonics.

The PCAS-2TE-9-0.1x0.1-TO8-wZnSeAR-70 from VIGO Photonics is a Photodiode with Wavelength Range 6.2 µm, Responsivity/Photosensitivity 2.8 A/W. More details for PCAS-2TE-9-0.1x0.1-TO8-wZnSeAR-70 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PCAS-2TE-9-0.1x0.1-TO8-wZnSeAR-70
  • Manufacturer
    VIGO Photonics
  • Description
    Type II superlattice, two-stage thermoelectrically cooled, photoconductive detector

General Parameters

  • Configuration
    Single
  • Acceptance Angle
    70 Degree
  • Cut-Off Frequency
    20 kHz (noise corner frequency)
  • Cut-Off Wavelength
    11 µm
  • Detectivity
    2.8 x 108 cm·Hz1/2/W
  • Module
    No
  • Package
    TO-8
  • Package Type
    TO-Can
  • Operation Mode
    Photoconductive
  • Wavelength Range
    6.2 µm
  • Photodiode Material
    InAs, InAsSb
  • Reverse Bias Voltage
    0.5 V
  • Shunt Resistance
    95 Ohms
  • Responsivity/Photosensitivity
    2.8 A/W
  • Note
    Constant Time: 12 ns

Physical Properties

  • Active Area
    0.1 x 0.1 mm
