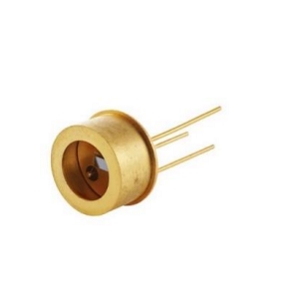

PV-5-AF0.1x0.1-TO39-NW-90

Photodiode by VIGO Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to VIGO Photonics.

The PV-5-AF0.1x0.1-TO39-NW-90 from VIGO Photonics is a Photodiode with Wavelength Range 4.4 µm, Responsivity/Photosensitivity 2.8 A/W. More details for PV-5-AF0.1x0.1-TO39-NW-90 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PV-5-AF0.1x0.1-TO39-NW-90
  • Manufacturer
    VIGO Photonics
  • Description
    HgCdTe ambient temperature photovoltaic detector with anti-fringing technology

General Parameters

  • Configuration
    Single
  • Acceptance Angle
    90 Degree
  • Cut-Off Wavelength
    >5.3 µm
  • Detectivity
    1.45 x 109 cm·Hz1/2/W
  • Module
    No
  • Package
    TO-39
  • Package Type
    TO-Can
  • Operation Mode
    Photovoltaic
  • Wavelength Range
    4.4 µm
  • Photodiode Material
    Mercury Cadmium Telluride (HgCdTe)
  • Shunt Resistance
    265 Ohms
  • Responsivity/Photosensitivity
    2.8 A/W
  • Note
    Constant Time: 177 ns, Active area: AF 0.1 x 0.1 mm2
