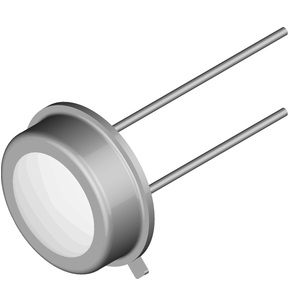

BPW20RF

Photodiode by Vishay Intertechnology

Note: Your Quotation Request will be directed to Vishay Intertechnology.

The BPW20RF from Vishay Intertechnology is a Photodiode with Wavelength Range 400 to 1100 nm, Capacitance 1.2 to 400 pF, Dark Current 2 to 30 nA (Reverse), Rise Time 3.4 µs, Active Area Diameter 8.13 mm. More details for BPW20RF can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    BPW20RF
  • Manufacturer
    Vishay Intertechnology
  • Description
    Silicon Photodiode, RoHS Compliant

Applications

  • Application
    Sensor for light measuring techniques in cameras, photometers, color analyzers, exposure meters (e.g. solariums) and other medical and industrial measuring and control applications.

General Parameters

  • Breakdown Voltage
    10 V
  • Dark Resistance :
    38 GOhms
  • Detector Sensitivity :
    ±50 Degree (Angle of half sensitivity)
  • Fall Time
    3.7 µs
  • Forward Voltage
    1 to 1.3 V
  • Module
    No
  • Package
    TO-5, Leaded
  • Package Type
    TO-Can, Leaded
  • Photodetector Type
    PN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    400 to 1100 nm
  • Photodiode Material
    Silicon
  • Power Dissipation
    300 mW
  • Reverse Current
    20 to 60 µA
  • Reverse Voltage
    10 V
  • Rise/Fall Time
    3.4 µs (Rise), 3.7 µs (Fall)
  • RoHs
    Yes
  • Short Circuit Current
    20 to 60 µA
  • Spectral Band
    Visible
  • Capacitance
    1.2 to 400 pF
  • Dark Current
    2 to 30 nA (Reverse)
  • Rise Time
    3.4 µs
  • Note
    Open circuit voltage: 330 to 500 mV

Physical Properties

  • Active Area
    7.5 mm2
  • Active Area Diameter
    8.13 mm

Temperature

  • Operating Temperature display
    -40 to 125 Degree C
  • Storage Temperature
    -40 to 125 Degree C
  • Temperature Coefficient
    -2 mV/K, 0.1 %/K
