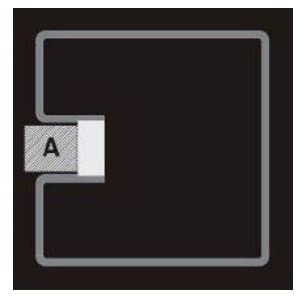

T1677P

Photodiode by Vishay Intertechnology
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Vishay Intertechnology.

The T1677P from Vishay Intertechnology is a Photodiode with Wavelength Range 430 to 700 nm, Capacitance 28 pF, Dark Current 0.1 to 2 nA, Rise Time 100 ns. More details for T1677P can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    T1677P
  • Manufacturer
    Vishay Intertechnology
  • Description
    Silicon PIN Photodiode from 430 to 700 nm

Applications

  • Application
    Ambient light sensor

General Parameters

  • Breakdown Voltage
    16 V
  • Detector Sensitivity :
    ±60 Degree (Angle of half sensitivity)
  • Fall Time
    100 ns
  • Module
    No
  • Package
    Chip
  • Package Type
    Chip
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    430 to 700 nm
  • Photodiode Material
    Silicon
  • Reverse Current
    43 to 87 nA
  • Reverse Voltage
    16 V
  • Rise/Fall Time
    100 ns
  • RoHs
    Yes
  • Spectral Band
    Visible
  • Supply Current
    Output Current: 15 nA
  • Capacitance
    28 pF
  • Dark Current
    0.1 to 2 nA
  • Rise Time
    100 ns
  • Note
    Angle of Half Sensitivity: ±60 deg

Physical Properties

  • Active Area
    0.27 x 0.27 mm
  • Dimensions
    0.72 x 0.72 x 0.28 mm (L x W x H)

Temperature

  • Operating Temperature
    -40 to 100 Degree C
  • Storage Temperature
    -40 to 100 Degree C
