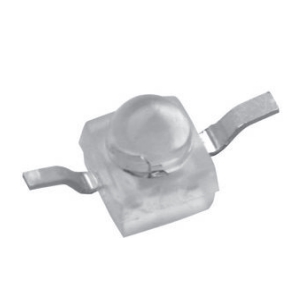

VEMD2500X01

Photodiode by Vishay Intertechnology
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Vishay Intertechnology.

The VEMD2500X01 from Vishay Intertechnology is a Photodiode with Wavelength Range 350 to 1120 nm, Capacitance 1.3 to 4 pF, Dark Current 1 to 10 nA, Rise Time 100 ns. More details for VEMD2500X01 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VEMD2500X01
  • Manufacturer
    Vishay Intertechnology
  • Description
    Silicon PIN Photodiode from 350 to 1120 nm

Applications

  • Application
    High speed photo detector

General Parameters

  • Breakdown Voltage
    32 V
  • Configuration
    Single
  • Detector Sensitivity :
    ±15 Degree (Angle of half sensitivity)
  • Fall Time
    100 ns
  • Forward Voltage
    1 V
  • Module
    No
  • Package
    Surface Mount
  • Package Type
    Surface Mount
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    350 to 1120 nm
  • Photodiode Material
    Silicon
  • Power Dissipation
    215 mW
  • Reverse Current
    8.5 to 17 µA
  • Reverse Voltage
    60 V
  • Rise/Fall Time
    100 ns
  • RoHs
    Yes
  • Short Circuit Current
    11 µA
  • Spectral Band
    IR
  • Capacitance
    1.3 to 4 pF
  • Dark Current
    1 to 10 nA
  • Rise Time
    100 ns

Physical Properties

  • Active Area
    0.23 mm2
  • Dimensions
    2.3 x 2.3 x 2.8 mm (L x W x H)

Temperature

  • Operating Temperature
    -40 to 100 Degree C
  • Storage Temperature
    -40 to 100 Degree C
  • Temperature Coefficient
    0.1 %/K
