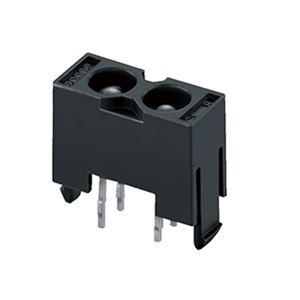

ITR20002

Photointerrupter by EVERLIGHT Electronics
14 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EVERLIGHT Electronics.

The ITR20002 from EVERLIGHT Electronics is a Photointerrupter with Rise Time 20 µs, Wavelength 940 nm, Power Dissipation 80 to 100 mW, Fall Time 25 µs, Collector Current 20 mA. More details for ITR20002 can be seen below.

Product Specifications

Product Details

  • Part Number
    ITR20002
  • Manufacturer
    EVERLIGHT Electronics

Applications

  • Applications
    Mouse Copier, Floppy disk driver, Non-contact Switching, For Direct PC Board

General Parameters

  • Type
    Reflective
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Rise Time
    20 µs
  • Wavelength
    940 nm
  • Emitter Material
    GaAlAs
  • Power Dissipation
    80 to 100 mW
  • Package Type
    DIL / DIP / Through Hole
  • Chip Material
    GaAlAs, Silicon
  • Emitter-Collector Voltage
    6 V
  • Forward Current
    60 mA
  • Fall Time
    25 µs
  • On State Collector Current
    0.04 to 0.9 mA
  • pb Free
    Yes
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • RoHS
    Yes
  • Collector Current
    20 mA
  • Collector-Dark Current
    100 nA
  • Collector-Emitter Voltage(Vce)
    35 V
  • Forward Voltage
    1.2 to 1.5 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -25 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
