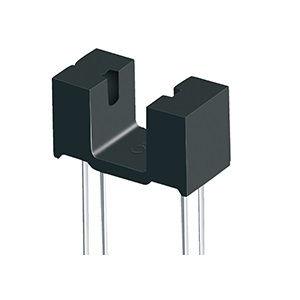

ITR9707

Photointerrupter by EVERLIGHT Electronics
14 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EVERLIGHT Electronics.

The ITR9707 from EVERLIGHT Electronics is a Photointerrupter with Rise Time 15 µs, Wavelength 940 nm, Power Dissipation 75 mW, Gap Width 5.2 mm, Fall Time 15 µs. More details for ITR9707 can be seen below.

Product Specifications

Product Details

  • Part Number
    ITR9707
  • Manufacturer
    EVERLIGHT Electronics
  • Description
    Opto Interrupter

Applications

  • Applications
    Mouse Copier, Switch Scanner, Floppy disk driver, Non-contact Switching, For Direct Board

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Rise Time
    15 µs
  • Wavelength
    940 nm
  • Emitter Material
    GaAlAs
  • Power Dissipation
    75 mW
  • Package Type
    DIL / DIP / Through Hole
  • Gap Width
    5.2 mm
  • Chip Material
    GaAlAs, Silicon
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    50 mA
  • Fall Time
    15 µs
  • On State Collector Current
    0.5 mA
  • pb Free
    Yes
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • RoHS
    Yes
  • Collector Current
    20 mA
  • Collector-Dark Current
    100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.5 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -25 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Dimension
    12.8 x 6.4 x 6.9 mm
