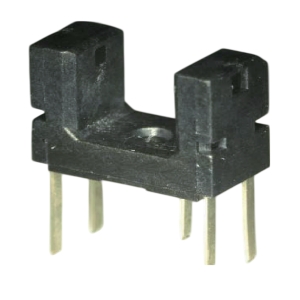

LG2B04D

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The LG2B04D from KODENSHI is a Photointerrupter with Rise Time 20 µs, Wavelength 820 nm, Power Dissipation 130 mW (Input), 200 mW (Output), Gap Width 3.2 mm, Fall Time 20 µs. More details for LG2B04D can be seen below.

Product Specifications

Product Details

  • Part Number
    LG2B04D
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Copiers, Fax, Printers, Vending machines,Amusement machine,etc.

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Rise Time
    20 µs
  • Wavelength
    820 nm
  • Power Dissipation
    130 mW (Input), 200 mW (Output)
  • Package Type
    DIL / DIP / Through Hole
  • Gap Width
    3.2 mm
  • Forward Current
    50 mA
  • H - L Propagation Time
    100 µs
  • Hysteresis
    0.55 to 0.95
  • Fall Time
    20 µs
  • Output Voltage
    0.4 to 11.88 V
  • Reverse Current
    10 µA
  • Reverse Voltage
    3 V
  • Supply Current
    4 mA
  • Supply Voltage
    3.3 to 13.2 V
  • Threshold Input Current
    8 mA
  • Forward Voltage
    1.65 to 2 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 100 Degree C
