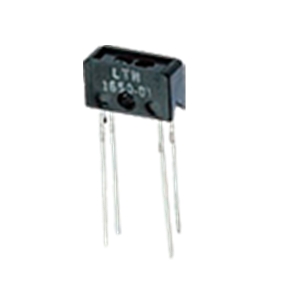

LTH-301A

Photointerrupter by LITE-ON
29 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LITE-ON.

The LTH-301A from LITE-ON is a Photointerrupter with Power Dissipation 75 mW (Input), 100 mW (Output), Fall Time 10 µs, Collector Current 20 mA, Collector-Dark Current 100 nA, Collector-Emitter Voltage(Vce) 30 V. More details for LTH-301A can be seen below.

Product Specifications

Product Details

  • Part Number
    LTH-301A
  • Manufacturer
    LITE-ON

General Parameters

  • Type
    Reflective
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Power Dissipation
    75 mW (Input), 100 mW (Output)
  • Package Type
    Direct Mount, DIL / DIP / Through Hole
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    50 mA
  • Fall Time
    10 µs
  • On State Collector Current
    0.5 mA
  • Reverse Current
    100 µA
  • Reverse Voltage
    5 V
  • Collector Current
    20 mA
  • Collector-Dark Current
    100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.6 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -25 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
