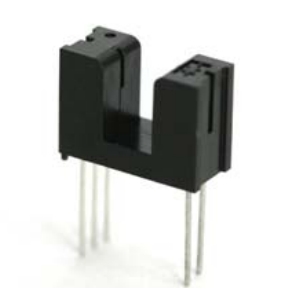

LG206D

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The LG206D from KODENSHI is a Photointerrupter with Rise Time 0.6 µs, Wavelength 940 nm, Power Dissipation 100 mW (Input), 200 mW (Output), Gap Width 5 mm, Fall Time 0.02 µs. More details for LG206D can be seen below.

Product Specifications

Product Details

  • Part Number
    LG206D
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Amusement machine, Copier, Printer, ATM, Vending machine, Exchanging machine

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Rise Time
    0.6 µs
  • Wavelength
    940 nm
  • Power Dissipation
    100 mW (Input), 200 mW (Output)
  • Package Type
    PWB direct mount
  • Gap Width
    5 mm
  • Forward Current
    60 mA
  • H - L Propagation Time
    3 µs
  • Hysteresis
    0.6 to 0.98
  • L - H Propagation Time
    1 µs
  • Fall Time
    0.02 µs
  • Output Voltage
    0.4 to 4.5 V
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • Supply Current
    3 to 10 mA
  • Supply Voltage
    4.5 to 16.5 V
  • Threshold Input Current
    5 to 12 mA
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 85 Degree C
