LG2A13NL1

Photointerrupter by KODENSHI

Note: Your Quotation Request will be directed to KODENSHI.

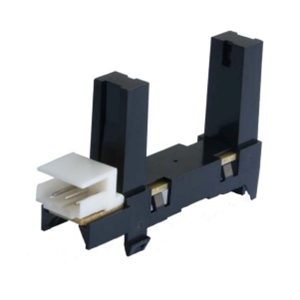

The LG2A13NL1 from KODENSHI is a Photointerrupter with Power Dissipation 100 mW, Gap Width 20 mm. More details for LG2A13NL1 can be seen below.

Product Specifications

Product Details

  • Part Number
    LG2A13NL1
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Copier, Printer, ATM, Ticket vending machine

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Power Dissipation
    100 mW
  • Package Type
    Snap-In
  • Gap Width
    20 mm
  • Output Voltage
    0.2 to 4.5 V
  • Supply Current
    20 to 30 mA
  • Supply Voltage
    4.5 to 5.5 V

Environmental Conditions

  • Operating Temperature
    -20 to 90 Degree C
  • Storage Temperature
    -30 to 95 Degree C
