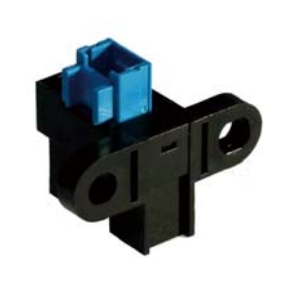

LG2A17D4

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The LG2A17D4 from KODENSHI is a Photointerrupter with Power Dissipation 200 mW, Gap Width 3.5 mm. More details for LG2A17D4 can be seen below.

Product Specifications

Product Details

  • Part Number
    LG2A17D4
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Amusement machine, Copier, Printer, ATM, Vending machine, Exchanging machine

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Power Dissipation
    200 mW
  • Package Type
    Screw Mount
  • Gap Width
    3.5 mm
  • Output Voltage
    0.2 to 10.8 V
  • Supply Current
    11 to 17 mA
  • Supply Voltage
    10.8 to 13.2 V

Environmental Conditions

  • Operating Temperature
    -20 to 75 Degree C
  • Storage Temperature
    -30 to 85 Degree C

Technical Documents
Click to view more product details on manufacturer's website
