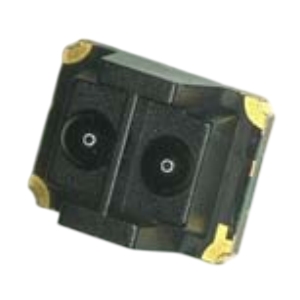

SG132

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The SG132 from KODENSHI is a Photointerrupter with Rise Time 20 µs, Power Dissipation 75 mW (Input), 40 mW (Output), Fall Time 10 µs, Collector Current 20 mA, Collector-Dark Current 1 to 100 nA. More details for SG132 can be seen below.

Product Specifications

Product Details

  • Part Number
    SG132
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Paper exisence, paper size detector in a printer, Origin position detector, Barcode reader

General Parameters

  • Type
    Reflective
  • Rise Time
    20 µs
  • Emitter Material
    GaAs
  • Power Dissipation
    75 mW (Input), 40 mW (Output)
  • Package Type
    Surface Mount
  • Detection Distance
    3 mm
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    50 mA
  • Leakage Current
    6 µA
  • Fall Time
    10 µs
  • Light Current
    25 to 90 µA
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • Collector Current
    20 mA
  • Collector-Dark Current
    1 to 100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
