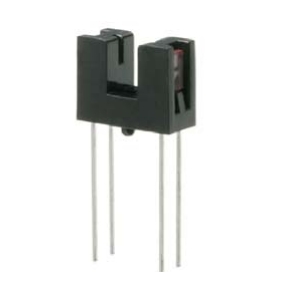

SG223

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The SG223 from KODENSHI is a Photointerrupter with Rise Time 10 µs, Wavelength 940 nm, Power Dissipation 75 mW, Gap Width 3 mm, Fall Time 15 µs. More details for SG223 can be seen below.

Product Specifications

Product Details

  • Part Number
    SG223
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Amusement machine, Copier, Printer

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.15 to 0.4 V
  • Rise Time
    10 µs
  • Wavelength
    940 nm
  • Power Dissipation
    75 mW
  • Package Type
    PWB direct mount
  • Gap Width
    3 mm
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    50 mA
  • Leakage Current
    0.5 to 10 µA
  • Fall Time
    15 µs
  • Light Current
    0.7 to 14 mA
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • Collector Current
    20 mA
  • Collector-Dark Current
    1 to 100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.5 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 85 Degree C
