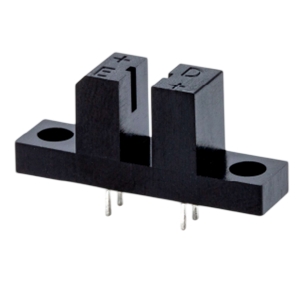

DPI050100

Photointerrupter by OncQue
9 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OncQue.

The DPI050100 from OncQue is a Photointerrupter with Wavelength 940 nm, Power Dissipation 75 mW, Gap Width 3.1 mm, Collector Current 20 mA, Collector-Dark Current 1 µA. More details for DPI050100 can be seen below.

Product Specifications

Product Details

  • Part Number
    DPI050100
  • Manufacturer
    OncQue

Applications

  • Applications
    Automatic control system, Automation Equipment, Scanner, Printer, Fax machine, Copy machine, Printing machine, PC mouse, Security system, Counter, Optical encoders, position detecting, paper detecting, signal detecting

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Wavelength
    940 nm
  • Power Dissipation
    75 mW
  • Package Type
    DIL / DIP / Through Hole, Screw Mount
  • Gap Width
    3.1 mm
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    30 mA
  • Light Current
    0.5 mA
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • RoHS
    Yes
  • Threshold Input Current
    10 mA
  • Collector Current
    20 mA
  • Collector-Dark Current
    1 µA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.5 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -45 to 85 Degree C
