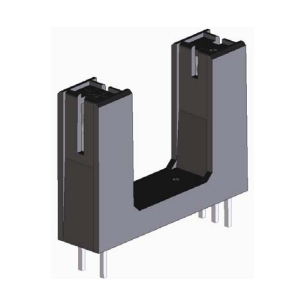

LG2C15D

Photointerrupter by KODENSHI
100 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to KODENSHI.

The LG2C15D from KODENSHI is a Photointerrupter with Rise Time 0.6 µs, Wavelength 940 nm, Power Dissipation 100 mW (Input), 200 mW (Output), Gap Width 10 mm, Fall Time 0.02 µs. More details for LG2C15D can be seen below.

Product Specifications

Product Details

  • Part Number
    LG2C15D
  • Manufacturer
    KODENSHI

Applications

  • Applications
    Copiers, Fax, Printers, Vending machines,Amusement machine,etc.

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Rise Time
    0.6 µs
  • Wavelength
    940 nm
  • Emitter Material
    GaAs
  • Power Dissipation
    100 mW (Input), 200 mW (Output)
  • Package Type
    PWB direct mount
  • Gap Width
    10 mm
  • Forward Current
    60 mA
  • H - L Propagation Time
    1 µs
  • Hysteresis
    0.5 to 0.95
  • Fall Time
    0.02 µs
  • Output Voltage
    0.3 to 4.5 V
  • Reverse Current
    10 µA
  • Reverse Voltage
    5 V
  • Supply Current
    3 to 10 mA
  • Supply Voltage
    4.5 to 16.5 V
  • Threshold Input Current
    4 to 13 mA
  • Forward Voltage
    1.2 to 1.4 V

Environmental Conditions

  • Lead Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 85 Degree C
