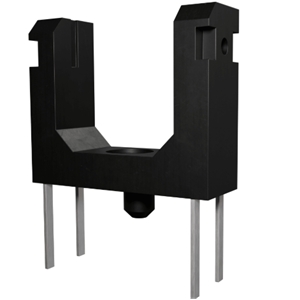

8ITR726D05SB0001

Photointerrupter by Edison Opto
17 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Edison Opto.

The 8ITR726D05SB0001 from Edison Opto is a Photointerrupter with Power Dissipation 75 to 100 mW, Gap Width 5 mm, Fall Time 10 µs, Collector Current 20 mA, Collector-Dark Current 100 nA. More details for 8ITR726D05SB0001 can be seen below.

Product Specifications

Product Details

  • Part Number
    8ITR726D05SB0001
  • Manufacturer
    Edison Opto

Applications

  • Applications
    Scanner, Printer, FAX machine, Counter

General Parameters

  • Type
    Transmissive (Slotted/Gap)
  • Collector-Emitter Saturation Voltage
    0.4 V
  • Emitter-Collector Breakdown Voltage
    5 V
  • Power Dissipation
    75 to 100 mW
  • Package Type
    DIP
  • Aperture
    0.5 mm
  • Gap Width
    5 mm
  • Collector-Emitter Breakdown Voltage(Vbce)
    30 V
  • Emitter-Collector Voltage
    5 V
  • Forward Current
    50 mA
  • Fall Time
    10 µs
  • On State Collector Current
    0.25 mA (Current transfer Ratio)
  • pb Free
    Yes
  • Reverse Current
    100 µA
  • Reverse Voltage
    5 V
  • RoHS
    Yes
  • Collector Current
    20 mA
  • Collector-Dark Current
    100 nA
  • Collector-Emitter Voltage(Vce)
    30 V
  • Forward Voltage
    1.2 to 1.35 V

Environmental Conditions

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Physical Properties

  • Dimension
    7.5 x 2.5 x 6.3 mm
