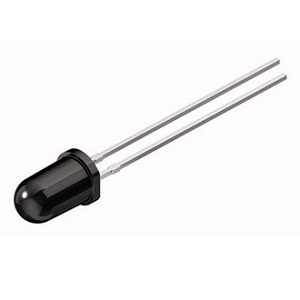

SFH 313 FA

Phototransistor by ams OSRAM
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ams OSRAM.

The SFH 313 FA from ams OSRAM is a Phototransistor with Collector Emitter Voltage (Breakdown) 70 V, Collector-Dark Current 3 to 200 nA, Collector Emitter Voltage(Saturation) 150 mV, Power Dissipation 200 mW, Wavelength(Spectral Sensitivity) 740 to 1080 nm. More details for SFH 313 FA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SFH 313 FA
  • Manufacturer
    ams OSRAM
  • Description
    5 mm (T1 ¾) Plastic Package, with or w/o Daylight Filter, Half Angle ±10 °

Applications

  • Application
    Computer-controlled flashes, Photointerrupters, Industrial electronics, For control and drive circuits

General Parameters

  • Capacitance
    10 pF
  • Collector Current
    50 mA
  • Fall Time
    8 to 14 us
  • Material
    Silicon
  • Package
    Epoxy
  • Peak Wavelength Sensitivity
    875 nm
  • Phototransistor Type
    Phototransistor
  • Polarity
    NPN
  • Reception angle :
    10 Degree
  • Rise Time
    8 to 14 us
  • Photodiode Current
    2500 uA
  • Thermal resistance :
    375 K/W
  • Collector Emitter Voltage (Breakdown)
    70 V
  • Collector-Dark Current
    3 to 200 nA
  • Collector Emitter Voltage(Saturation)
    150 mV
  • Power Dissipation :
    200 mW
  • Wavelength(Spectral Sensitivity)
    740 to 1080 nm
  • Note
    Collector Surge Current: 100 mA

Physical Properties

  • Photosensitive Area
    0.55 mm2
  • Dimension
    1 x 1 mm

Temperature

  • Operating Temperature
    -40 to 100 Degree C
  • Storage Temperature
    -40 to 100 Degree C
