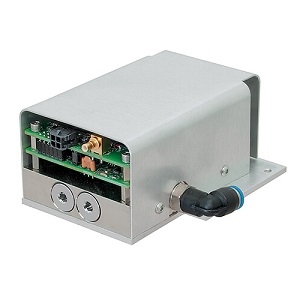

DP-2000-1.5-Al

Pockels Cell Driver by EKSMA Optics
46 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EKSMA Optics.

The DP-2000-1.5-Al from EKSMA Optics is a Pockels Cell Driver with Output Voltage Amplitude 1.5 to 1.5 kV, Supply Voltage(DC) 12 to 24 VDC, Fall Time <7 ns, Repetition Rate 2000 kHz, Pulse Width 100 to 5000 ns. More details for DP-2000-1.5-Al can be seen below.

Product Specifications

Product Details

  • Part Number
    DP-2000-1.5-Al
  • Manufacturer
    EKSMA Optics
  • Description
    1.5 to 1.5 kV 2000 kHz 100 to 5000 ns Pockel cell driver

Electrical Specifications

  • Output Voltage Amplitude
    1.5 to 1.5 kV
  • Supply Voltage(DC)
    12 to 24 VDC
  • Fall Time
    <7 ns
  • HV Operation Voltage
    1.5 kV
  • 24 VDC Power Consumption
    <12 W
  • HV Power Consumption
    <120 W

General Parameters

  • Amplitude Voltage
    1.5 kV
  • Repetition Rate
    2000 kHz
  • Pulse Width
    100 to 5000 ns
  • Rise Time
    <7 ns
  • Cooling
    Water Cooled
  • Design Type
    Bench-top
  • Output Polarity
    Positive
  • Technology
    Q-switching, DPSS Laser
