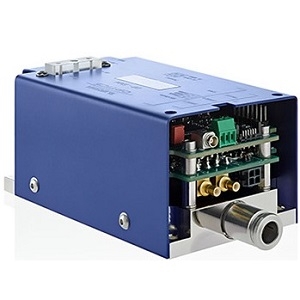

DP-FAM-250-2.5-Al

Pockels Cell Driver by EKSMA Optics
46 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to EKSMA Optics.

The DP-FAM-250-2.5-Al from EKSMA Optics is a Pockels Cell Driver with Output Voltage Amplitude 0.1 to 2.5 kV, Supply Voltage(DC) 24 VDC, Fall Time <10 to 13 ns, Trigger Voltage 3.5 to 5 V, Repetition Rate 250 kHz. More details for DP-FAM-250-2.5-Al can be seen below.

Product Specifications

Product Details

  • Part Number
    DP-FAM-250-2.5-Al
  • Manufacturer
    EKSMA Optics
  • Description
    0.1 to 2.5 kV 250 kHz 70 to 3000 ns Pockel cell driver

Electrical Specifications

  • Output Voltage Amplitude
    0.1 to 2.5 kV
  • Supply Voltage(DC)
    24 VDC
  • Fall Time
    <10 to 13 ns
  • HV Operation Voltage
    0.1 to 2.5 kV
  • 24 VDC Power Consumption
    <12 W
  • Trigger Voltage
    3.5 to 5 V
  • Input Voltage
    0.1 to 4.9 V (input signal)
  • HV Power Consumption
    60 W

General Parameters

  • Repetition Rate
    250 kHz
  • Pulse Width
    70 to 3000 ns
  • Rise Time
    <10 to 26 ns
  • Cooling
    Conductive Cooled, Water Cooled
  • Control Interface
    CAN
  • Design Type
    Bench-top
  • Output Polarity
    Positive
  • Rise/Fall Time
    <10 ns
  • Technology
    Q-switching, DPSS Laser

Physical Properties

  • Dimensions
    139 x 69 x 57 mm
