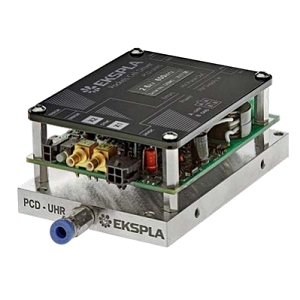

The PCD-UHR-250-2.6-(C) from EKSPLA is a Pockels Cell Driver that has a pulse amplitude of 2.6 kV. It has a maximum repetition rate of 250 kHz and pulse duration of 100 ns - 3900 ns. This pockels cell driver has a rise/fall time of less than 6 ns and support pulse regeneration technique for infinite pulse duration. It has a jitter of less than 100 ps and pulse delay of 25 ns - 30 ns. This pockels cell driver has a minimum pause between pulses of 100 ns and load capacitance of up to 6 pF. It utilizes 1 or 2 external triggering input pulses with a duration of greater than 20 ns and an amplitude of 3.5 V - 5 V.
The PCD-UHR-250-2.6-(C) is designed for BBO, RTP, KD*P, KTP, LiNbO3, and CdTe crystals. It has a triggering pulse rise/fall time below 10 ns and can be controlled via CAN-USB interface. This pockels cell driver requires a DC supply voltage of 24 V and consumes 40 W of power. It is available in a module that measures 114 mm x 73 mm x 50 mm and is ideal for micromachining, welding, cutting, ophthalmology, dermatology, surgery, fusion research, spectroscopy & high-energy physics applications.
