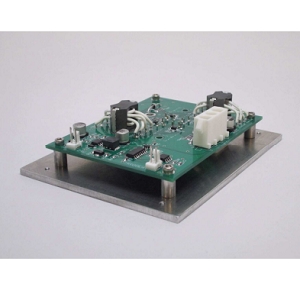

LVR-DRIVE OEM | R-DRIVE

Pockels Cell Driver by G&H
10 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to G&H.

The LVR-DRIVE OEM | R-DRIVE from G&H is a Pockels Cell Driver with Output Voltage Amplitude 0 to 2.5 kV, Supply Voltage(DC) 24 VDC, Fall Time 6 to 9.5 ns, Trigger Voltage 4 to 10 V, Repetition Rate 0 to 40 kHz (Conduction), 40 to 200 kHz (Water Cooled). More details for LVR-DRIVE OEM | R-DRIVE can be seen below.

Product Specifications

Product Details

  • Part Number
    LVR-DRIVE OEM | R-DRIVE
  • Manufacturer
    G&H
  • Description
    0 to 2.5 kV 0 to 200 kHz 250 to 3000 ns Bipolar Pockel cell driver

Applications

  • Application
    Metal cutting, Welding, Glass and sapphire cutting, Spectroscopy

Electrical Specifications

  • Output Voltage Amplitude
    0 to 2.5 kV
  • Supply Voltage(DC)
    24 VDC
  • Fall Time
    6 to 9.5 ns
  • Trigger Voltage
    4 to 10 V
  • Input Voltage
    24 VDC
  • Input Current
    200 mA

General Parameters

  • Repetition Rate
    0 to 40 kHz (Conduction), 40 to 200 kHz (Water Cooled)
  • Pulse Width
    250 to 3000 ns
  • Rise Time
    6 to 9.5 ns
  • Cooling
    Conduction Cooled, Water Cooled
  • Output Type
    Bi-Polar
  • Output Jitter
    20 ps RMS (trigger to output)
  • Propagation Delay
    40 ns

Physical Properties

  • Dimensions
    115 x 90 x 30 mm

Environmental Conditions

  • Operating Temperature
    50 Degree C
