QBD-nano-5002

Pockels Cell Driver by OEM Tech
76 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OEM Tech.

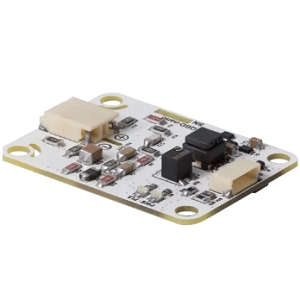

The QBD-nano-5002 from OEM Tech is a Pockels Cell Driver with Output Voltage Amplitude 4 to 5 kV, Supply Voltage(DC) 5 to 12 VDC, Load Capacitance 5 to 20 pF, Trigger Voltage 5 V (3 V-8 V), Repetition Rate 1 to 10 kHz. More details for QBD-nano-5002 can be seen below.

Product Specifications

Product Details

  • Part Number
    QBD-nano-5002
  • Manufacturer
    OEM Tech
  • Description
    4 to 5 kV 1 to 3 ns 1 to 10 kHz 5 to 20 pF Bipolar Pockel cell driver

Applications

  • Application
    Cavity dumping, Q-switching

Electrical Specifications

  • Output Voltage Amplitude
    4 to 5 kV
  • Supply Voltage(DC)
    5 to 12 VDC
  • Load Capacitance
    5 to 20 pF
  • HV Operation Voltage
    4000 to 5000 V
  • Trigger Voltage
    5 V (3 V-8 V)
  • Input Voltage
    5 to 12 V (4.5 to 12.5 V)
  • Current Consumption
    160 to 420 mA
  • Hold Time
    0.5 to 1 µs (On-time shelf)
  • Input Current
    200 to 500 mA

General Parameters

  • Crystal Material
    Beta Barium Borate (BBO), Potassium Dihydrogen Phosphate (KD*P), Potassium Titanyl Phosphate (KTP)
  • Repetition Rate
    1 to 10 kHz
  • Rise Time
    1 to 3 ns
  • Output Type
    Bi-Polar
  • Design Type
    PCB
  • Jitter
    <0.1 ns
  • Recovery Time
    <10 µs
  • Technology
    Q-Switching

Physical Properties

  • Dimensions
    40 x 30 x 10 mm (L x W x H)
  • Weight
    10 g

Environmental Conditions

  • Operating Temperature
    -40 to 65 Degree C
