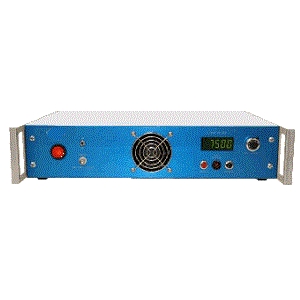

HVR-75100

Pockels Cell Driver by Sintec Optronics
27 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The HVR-75100 from Sintec Optronics is a Pockels Cell Driver with Output Voltage Amplitude 0 to 7.5 kV, Fall Time 10 to 15 ns, Load Capacitance 6 to 10 pF, Trigger Voltage 4 to 6 V, Repetition Rate 100 kHz. More details for HVR-75100 can be seen below.

Product Specifications

Product Details

  • Part Number
    HVR-75100
  • Manufacturer
    Sintec Optronics
  • Description
    0 to 7.5 kV 10 to 15 ns 100 kHz 6 to 10 pF Bipolar Pockel cell driver

Applications

  • Application
    Metal cutting, Welding, Glass cutting, Sapphire cutting, Spectroscopy

Electrical Specifications

  • Output Voltage Amplitude
    0 to 7.5 kV
  • Fall Time
    10 to 15 ns
  • Load Capacitance
    6 to 10 pF
  • Trigger Voltage
    4 to 6 V
  • HV Power Supply
    88 to 264 VAC, 50 to 60 Hz
  • Input Current
    88 to 264 mA
  • Input Frequency
    50 to 60 Hz
  • Input Impedance
    50 Ohms

General Parameters

  • Amplitude Voltage
    0 to 7.5 kV
  • Crystal Material
    Lithium Niobate (LNB), Beta Barium Borate (BBO), Deuterated Potassium Dihydrogen Phosphate (DKDP)
  • Repetition Rate
    100 kHz
  • Pulse Width
    250 to 3000 ns
  • Rise Time
    10 to 15 ns
  • Cooling
    Water Cooled
  • Output Type
    Bi-Polar
  • Output pulse delay from trigger pulse
    100 ns (Trigger)
  • Pulse Output
    nanosecond
  • Rise/Fall Time
    10 to 15 ns

Physical Properties

  • Dimensions
    432 x 381 x 95.25 mm

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C

Technical Documents
Click to view more product details on manufacturer's website
