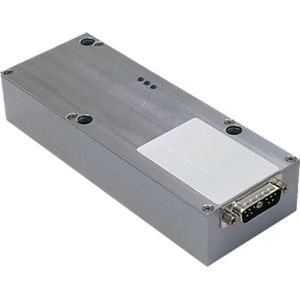

STHVSW03-OEM

Pockels Cell Driver by Sintec Optronics
27 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STHVSW03-OEM from Sintec Optronics is a Pockels Cell Driver with Output Voltage Amplitude 1 to 2 kV, Supply Voltage(DC) 24 VDC, Fall Time 5 to 7 ns, Load Capacitance 5 to 7 pF, Repetition Rate Up to 2 MHz. More details for STHVSW03-OEM can be seen below.

Product Specifications

Product Details

  • Part Number
    STHVSW03-OEM
  • Manufacturer
    Sintec Optronics
  • Description
    1 to 2 kV 5 to 7 ns Up to 2 MHz 5 to 7 pF Bipolar Pockel cell driver

Applications

  • Application
    pulse picking and regenerative amplifier control

Electrical Specifications

  • Output Voltage Amplitude
    1 to 2 kV
  • Supply Voltage(DC)
    24 VDC
  • Fall Time
    5 to 7 ns
  • Load Capacitance
    5 to 7 pF
  • Input Voltage
    24 VDC
  • Delay Time
    <50 ns
  • Input Current
    5.5 A

General Parameters

  • Amplitude Voltage
    0 to 2 kV
  • Repetition Rate
    Up to 2 MHz
  • Pulse Width
    Fixed: 15 ns, adjustable: 100 to 2000 ns
  • Rise Time
    5 to 7 ns
  • Output Type
    Bi-Polar
  • Control Interface
    RS-485
  • Jitter
    <0.5 ns (±250ps)
  • Pulse Output
    picosecond, femtosecond
  • Rise/Fall Time
    5 to 7 ns
  • Note
    Interpulse interval: >100 ns

Physical Properties

  • Dimensions
    69 x 60 x 32 mm
  • Weight
    <0.5 kg

Environmental Conditions

  • Operating Temperature
    10 to 40 Degree C
  • Storage Temperature
    -20 to 60 Degree C
