RTPM074A

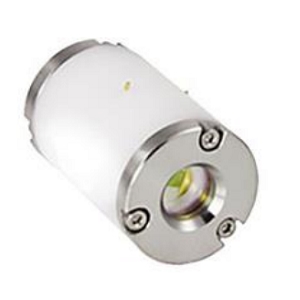

Pockels Cell by AGILTRON
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to AGILTRON.

The RTPM074A from AGILTRON is a Pockels Cell with Clear Aperture 4 mm, Half Wave Voltage 2300 V, Wavelength Range 600 to 900 nm, Capacitance 14 pF. More details for RTPM074A can be seen below.

Product Specifications

Product Details

  • Part Number
    RTPM074A
  • Manufacturer
    AGILTRON
  • Description
    600 to 900 nm 14 pF Capacitance 4 mm Rubidium Titanyle Phosphate (RTP)

Applications

  • Application
    Q-Switch, Phase/Power Modulation, Pulse Picker

Environmental Conditions

  • Operating Temperature
    -40 to 80 Degree C

General Parameters

  • Clear Aperture
    4 mm
  • Half Wave Voltage
    2300 V
  • Wavelength Range
    600 to 900 nm
  • Capacitance
    14 pF
  • Crystal Material
    Rubidium Titanyle Phosphate (RTP)
  • Damage Threshold
    1 to 600 MW/cm2
  • Dimension
    4 x 4 x 10 mm
  • Electro-optical Coefficients
    r23: 12.5 pm/V, r33: 35 pm/V, R51: 38.5 pm/V
  • Extinction Ratio
    20 to 35 dB
  • Parallelism
    5 Inches
  • Perpendicularity
    ±0.15 Degree
  • Power Density
    Material density: 3.6 g/cm2
  • Rise Fall Time
    0.5 to 1.1 ns
  • Scratch and dig
    20/10 mm
  • Clear Aperture display
    4 mm
  • Note
    Material Purity: 99.8%
