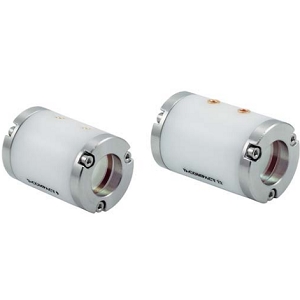

STEK-PCR12SR-532

Pockels Cell by Sintec Optronics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STEK-PCR12SR-532 from Sintec Optronics is a Pockels Cell with Clear Aperture 11 mm, Half Wave Voltage <3.5 kV, Wavelength Range 400 to 1100 nm (Transmission), Capacitance 6 pF, Pulse Width 10 ns. More details for STEK-PCR12SR-532 can be seen below.

Product Specifications

Product Details

  • Part Number
    STEK-PCR12SR-532
  • Manufacturer
    Sintec Optronics
  • Description
    400 to 1100 nm, 6 pF Potassium Dihydrogen Phosphate Pockel Cell

Applications

  • Application
    Q-Switching of the Laser Cavity, Cavity Dumping, Pulse Picking

General Parameters

  • Clear Aperture
    11 mm
  • Cell Cavity Material
    Nd:YAG
  • Half Wave Voltage
    <3.5 kV
  • Wavelength Range
    400 to 1100 nm (Transmission)
  • Capacitance
    6 pF
  • Contrast Ratio
    >1:2000
  • Crystal Material
    Potassium Dihydrogen Phosphate (KD*P)
  • Pulse Width
    10 ns
  • Transmission
    >96%
  • Dimension
    Cell size: 35 x 41.4 mm
  • Transmitted Wavefront Distortion
    λ/2
  • Technology
    Q-Switched Laser
  • Clear Aperture display
    11 mm
