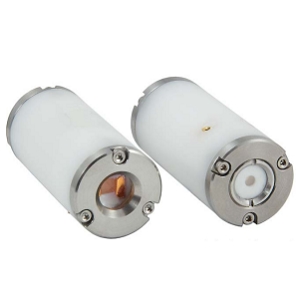

STEKPCB3S

Pockels Cell by Sintec Optronics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Sintec Optronics.

The STEKPCB3S from Sintec Optronics is a Pockels Cell with Clear Aperture 2.5 mm, Wavelength Range 200 to 2000 nm (Transmission), Quarter Wave Voltage <3.5 kV, Capacitance 4 pF, Pulse Width 10 ns. More details for STEKPCB3S can be seen below.

Product Specifications

Product Details

  • Part Number
    STEKPCB3S
  • Manufacturer
    Sintec Optronics
  • Description
    200 to 2000 nm, 4 pF Beta Barium Borate Pockel Cell

Applications

  • Application
    High Repetition Rate DPSS Q-switch, High Repetition Rate Regenerative Amplifier Control, Cavity Dumping, Beam Chopper, Pulse Picking

General Parameters

  • Clear Aperture
    2.5 mm
  • Wavelength Range
    200 to 2000 nm (Transmission)
  • Quarter Wave Voltage
    <3.5 kV
  • Capacitance
    4 pF
  • Contrast Ratio
    >1:1000
  • Crystal Material
    Beta Barium Borate (BBO)
  • Pulse Width
    10 ns
  • Damage Threshold
    >5 J/cm2
  • Transmission
    >98%
  • Dimension
    Cell size: 25.4 x 37.2 mm
  • Technology
    Q-Switched Laser
  • Clear Aperture display
    2.5 mm
